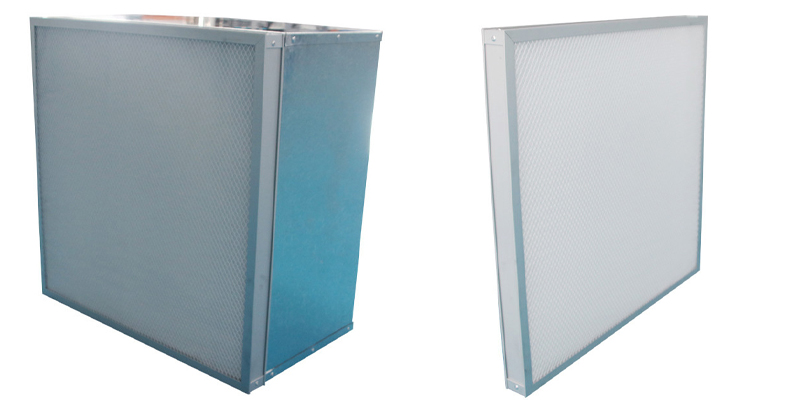

High temperature resistance pre filter furnace filter for primary filtration
1,High temperature resistance furnace filter description
High-temperature resistant primary filter is also called high-temperature coarse filter. It is mainly made of enter ultra-fine glass fiber material and converted into a "W" shape by special processing. The effective filter area is large, the initial resistance is low, and the service life is long. It is mainly applied to the primary air filtration of high-temperature ovens in general hot blast high-air oven air filtration and coating plants.
2,High temperature resistance furnace filter Features:
Plank temperature resistance filter
Features:
·Thin structure
·High dust holding capacity
·High temperature resistance
·Synthetic fiber&Fiber glass have no breaking or shedding
Application:
avoid tar, coom and dust from high-temperature dryer
Specifications:
Type: Plank temperature resistance filter
Frame: aluminum alloy, stainless steel or galvanized iron frame
Media: special Synthetic fiber, fiberglass
Protect mesh: aluminum or stainless steel mesh
EN779 class: G3,G4
Average arrestance: 88%,99%,93 %(ASHRAE52.1-1992)
EUROVENT4/5 class: EU3,EU4
Final resistance: (suggest)250Pa-300Pa
Max. air flow: 125% of the rated air flow
Temp. Resistance:250℃
Humidity: 80%
Parameters
| Dimensions W*H*D (mm) | Efficiency | High temp resistance(℃) | Air flow (m³/h) | Final Pressure (Pa) | Filter Area (m2) |
| 592*592*46 | G4(F5) | 450 | 3400 | ＜350 | 1.8 |
| 290*592*46 | G4(F5) | 450 | 1700 | 0.9 |
| 500*500*46 | G4(F5) | 450 | 2000 | 1.25 |
| 250*250*46 | G4(F5) | 450 | 1000 | 0.62 |
| 595*595*24 | G4(F5) | 450 | 1500 | 0.91 |
| 290*595*24 | G4(F5) | 450 | 750 | 0.45 |
| 500*500*24 | G4(F5) | 450 | 1000 | 0.65 |
| 250*500*24 | G4(F5) | 450 | 500 | 0.32 |
