Dehumidification horizontal laminar flow cabinet clean bench with dehumidifier
1. Laminar airflow cabinet with dehumidifier description:
This is the most innovative purification workbench widely used in medical and health, pharmaceutical, chemical experiments and other fields, and a new era of sterile and clean environment.
Features:
1. Applicable to the two airflow directions under different process requirements, horizontal flow and vertical flow can be switched at will.
2, Using adjustable air volume fan system, light touch switch and stepless adjustment voltage large . Ensure that the wind speed in the work area is always ideal.
2.Laminar airflow cabinet with dehumidifier features:
It is widely used in medical treatment, chemical experiment, electron, precise machinery, instrument, apparatus, medical preparation, operating room, foodstuff, drinks, daily-use cosmetic, stock raising and aviation, as well as providing germfree dustless clean environment.
>It can provide a clean area of Class A
>It can privide vertical or horizonal air flow without turbulence flow
>It can prevent the outside air get into the working area
>It is easy to control
>Customized design is welcome
3.Laminar airflow cabinet parameter
| Model | YN-CB1000 | YN-CB1500 | YN-CB1900 |
| Using Persons | 1 | 2 | 3 |
| External Size/W*D*H | 1000*730*1680mm | 1480*735*1680mm | 1880*710*1680mm |
| Operation Size/W*D*H | 920*610*620mm | 1400*615*615mm | 1800*675*640mm |
| Air Velocity | 0.3m/s ~ 0.6m/s,adjustable by six channels |
| Clean Rate | Class 100 for USA209E |
| Pre-filter | Polyester Filter |
| Main HEPA Filter | H13 or H14(Optional) |
| Average Clump Count | 0.5Cfu/plate.time |
| Noise | ≤60dB |
| Illuminating Value | ≥1000lux | ≥1000lux | ≥1000lux |
| UV lamp | 20w*1 | 30w*1 | 40w*1 |
| Fluorescent Lamp | 20w*1 | 30w*1 | 40w*1 |
| Front Window | 5mm toughened glass,anti-ultraviolet radiation,Manual |
| Structure Material | The main body is cold rolled steel,with anti-bacteria coating.The operation table is quality stainless steel. |
| Socket | 1 |
| Power | 700w | 900w | 950w |
| Net Weight | 105kgs | 135kgs | 180kgs |
Customized design is welcome.
4.Use environment and conditions:
Temperature: 5°C∽35°C;
Relative humidity: no more than 85% (+35°C);
Pressure: 86kPa∽106 kPa;
The maximum dust concentration: 3500 particles / L (dust particle size not less than 0.5μm, 1300);

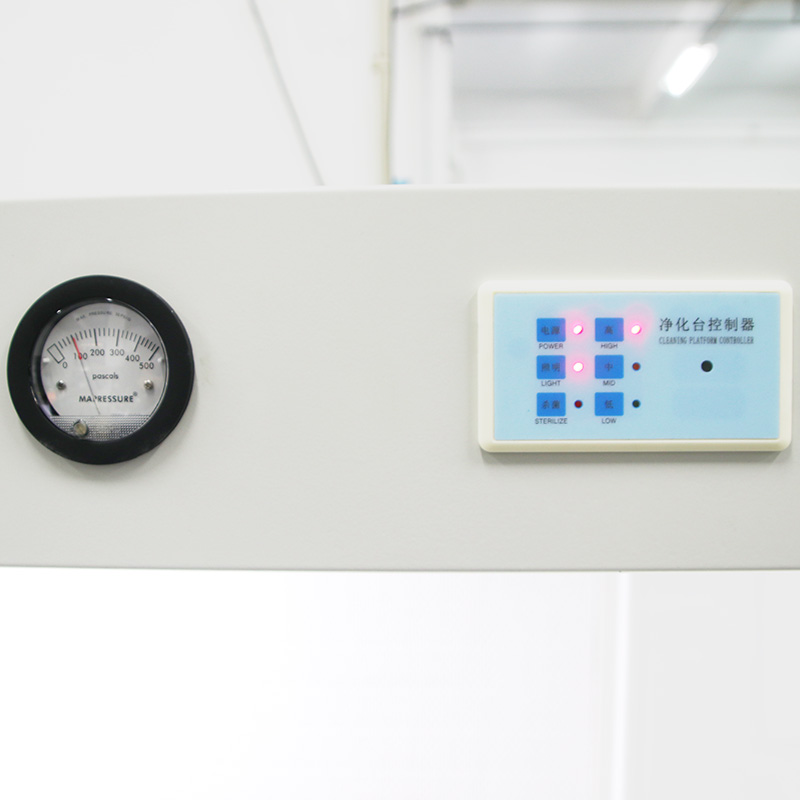

5.Detail photos

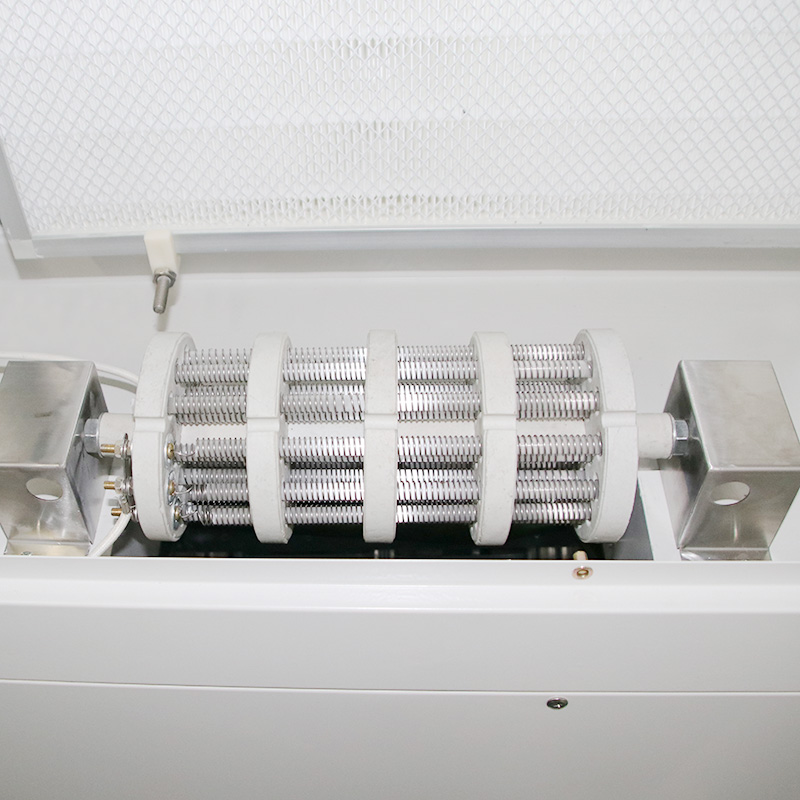

Equipped with dehumidifier
