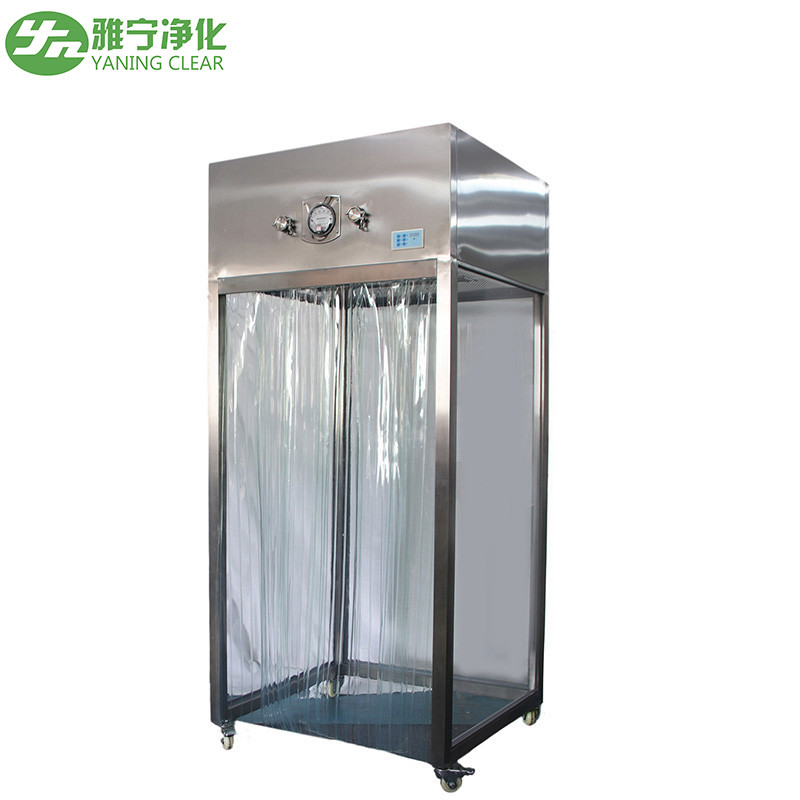

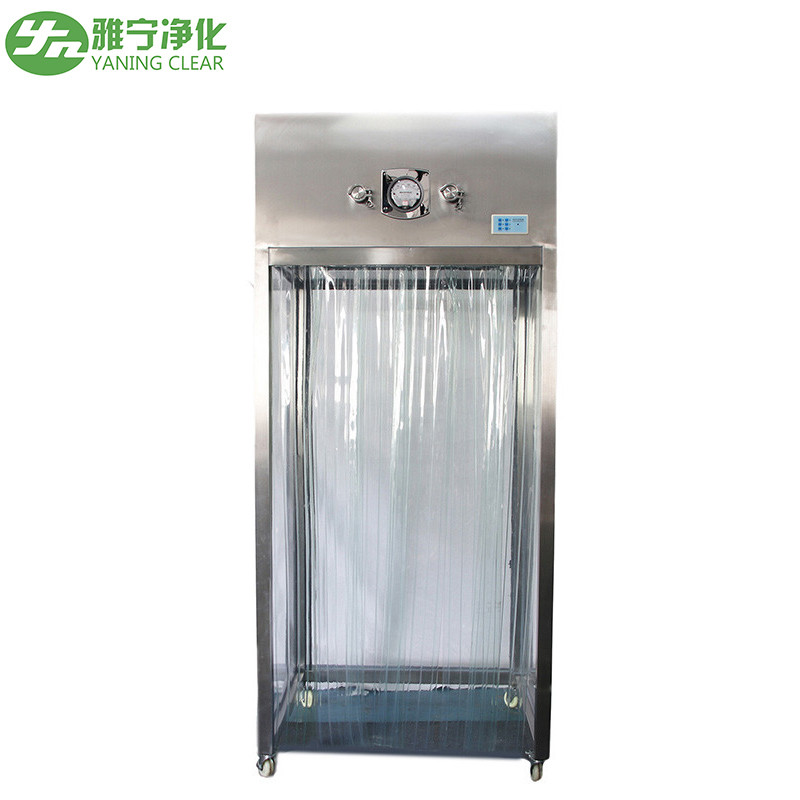

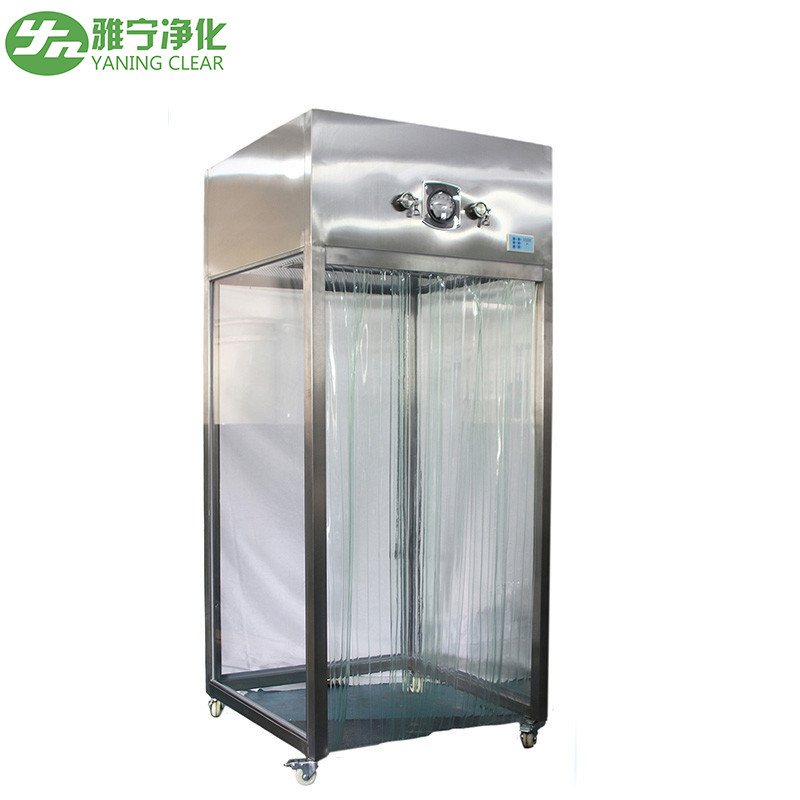

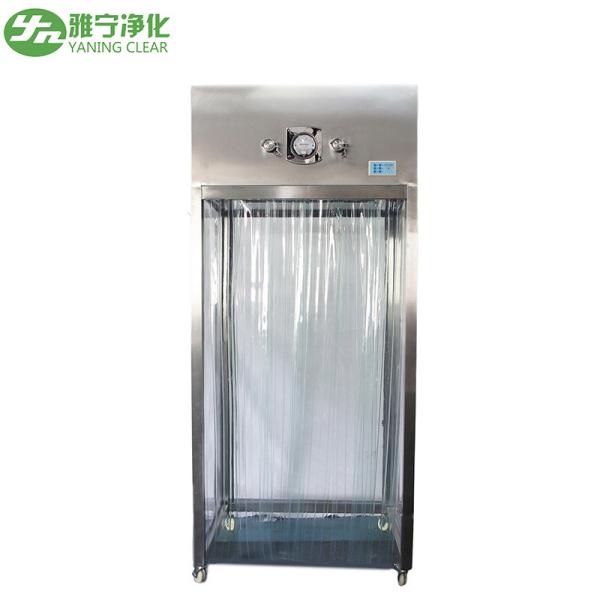

yaning gmp portable laboratory dust free modular clean room dispensing sampling clean booth
Product Description:
Sampling Booth has been designed to provide a Class 100 working environment at rest, with built-in scavenging system to ensure protection for the product, operator and surrounding environment.
Mobile sampling booth can be easily moved to various raw material storage areas sampling, used for various environmental storage areas. The device maximum clean class level up to one hundred, it is the required equipment for GMP standard. The main performance parameters as below:
Purification level: 100-10000 class;
Noise: ≤ 63dB (A);
Vibration: ≤ 3μm ( three directions X, Y, Z);
Normal operating conditions: temperature 5-40℃; relative humidity 80%;atmospheric pressure 80-160Kpa;
Lighting: ≥ 300Lx;
Appearance: baking surface is bright and smooth; anti-static air curtain is smooth, vertical, no damage.
Stability: four casters in the same plane;
Casters: flexible and reliable.
Product Detail:

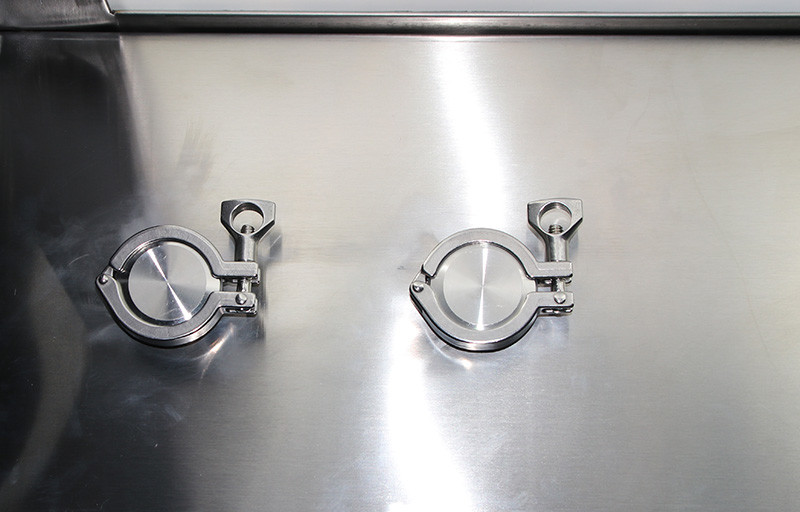

DOP/POA Port

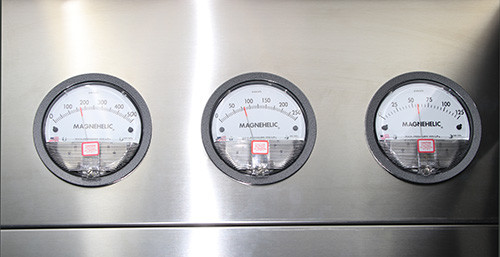

Pressure Guage

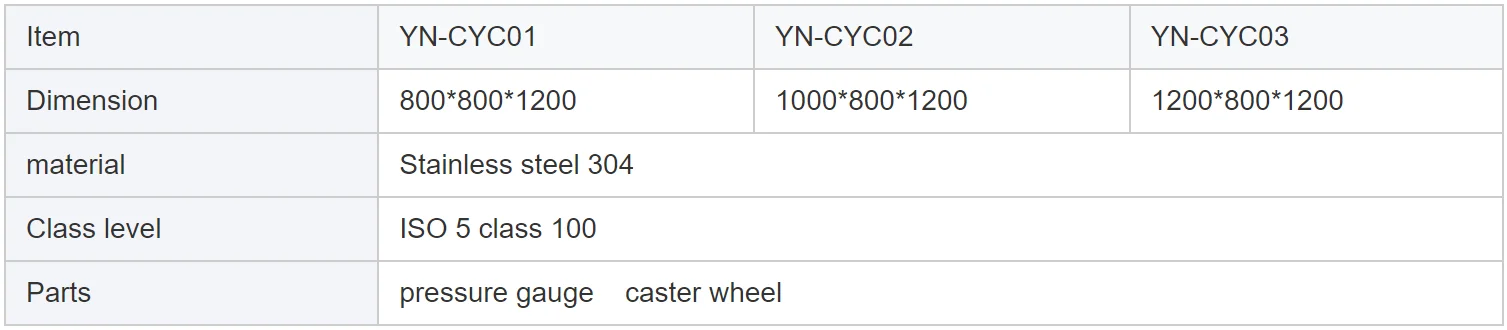

Technical Parameters:
The system comprises:
* Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than
99.99% for 0.3μ at supply position
* Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than
99.99% for 0.3μ at exhaust position
* Fabtech make prefilter which conforms to EU 4 Grade, with efficiency of 90% down to 10µ. These Filters are basically made from
micro-fibre-glass media and are inherently washable
* Fabtech make Intermediate filter which conforms to EU 7 Grade, with efficiency of 95% down to 3µ. These Filters are basically
made from micro-fibre-glass media and are inherently washable
* Motor Blower provided are statically and dynamically balanced, Supply of sufficient capacity and static pressure is used to take
care of airflow requirement for entire life of HEPA. The blower is high-performance, noise abated, light weighted
statically and dynamically balanced
* SS 304 Double Walled Side Panels
* Mechanical Differential Pressure Gauge (0mm-25mm: 2 Nos.) to monitor pressure drop across intermediate filter
* Photohelic Differential Pressure Gauge HEPA filter and (0mm-10mm: 1 No.) To monitor pressure drop across PRE Filter with respect
to ambient
* Electrical control panel mounted on the side panel of the unit
* Tube Light
* ON/OFF Switches for motor
* 5/15 Amp single-phase switch socket for external equipment
* DOP Test port at upstream of HEPA filter
