Stainless Steel 304 Class 100000 FFU Clean Room Booth With Air Shower

Brand Name : YANING

Model Number : YN-CR-001

Certification : CE Certification

Place of Origin : China

MOQ : 1PCS

Price : USD+2000+1PCS

Payment Terms : T/T

Supply Ability : 1+PCS+7days

Delivery Time : 8-10day

Packaging Details : Standard export packing (Bubble+foam+Carton+Wooden case) or as client required

Material : Stainless Steel 304

Product name : Class 100/1000/10000100000 Modular Design Clean Room

Filter : Hepa Filter H14

Warranty : 1 Year

Contact Now

Stainless Steel 304 Class 100000 FFU Clean Room with Air Shower

Stainless Steel 304 Class 100000 FFU Clean Room Booth With Air Shower

Product Description

Clean booth (simple clean room) is a kind of air purification equipment that can provide local high clean environment. It is a simple clean room for the fastest and most convenient establishment. The top FFU inhales the air, and the clean air filtered by the filter presents a vertical unidirectional flow on the entire air outlet surface, thus ensuring the required cleanliness in the working area.

Main Features

(1) Assembly structure designed, easy installation and easily moved
(2) Directional wheels can be installed, suitable for small building and high cleanliness area;

(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters
(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.

Configuration option

1.All SS 304

2. All SS 201
3.Hard Wall (Acrylic sheet or tempered glass)
4.Soft Wall (Anti-static curtain)

5.Clean level (Class100-Class 100000)
6.Entrance guard system

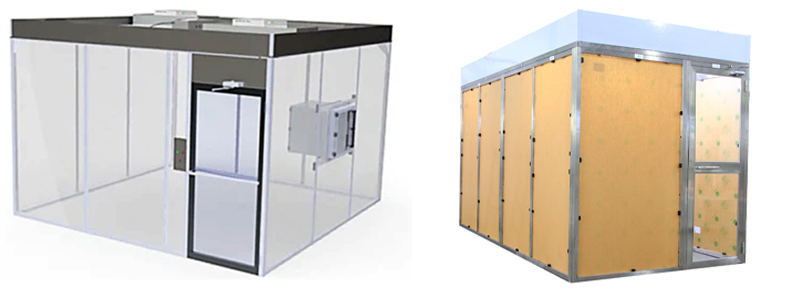

Available Types

Hardwall Cleanroom

* Hardwall cleanrooms have a strong support frame and panels. They are made from rigid materials, such as stainless steel, welded steel, acrylic, tempered glass, PVC, etc. *More permanent than soft wall clean rooms. * offer excellent environmental and contamination control.
* often made with modular construction which is more efficient assembly and disassembly.

Softwall Cleanroom

*A softwall cleanroom is a confined controlled
space with a metal frame, clear panel walls, an entrance, high efficiency particulate air (HEPA) filters, and exceptional lighting that is designed to provide a contaminant and particulate matter free workspace.
*Softwall cleanrooms are cleanrooms with fabric walls. These fabric walls may either be made from free-hanging plastic strips or fabric stretched tightly over a frame.
* Softwall cleanrooms are highly portable, and may be designed modularly more efficient assembly and disassembly.

Benefits:

①Sturdy structure, beautiful and durable, no rust, no dust.
②Simple clean room with the lowest cost and quick construction.
③Can be customized to meet the needs of the site space and usage.
④UV sterilization lamp can be installed.

Frame
* Aluminum profile
* Stainless Steel

Curtains
* 40mm Thick Clear Vinyl
* Static Dissipative Material
* Easy-to-use Dual Lock Attachment
* Strip Doors for Convenient Access

Filters and Lights
* Motorized Ceiling H14 HEPA Filter Units
* Variable Speed Control
* Class 100,000 to Class 10 (ISO 8 to ISO 4)
* LED Flat Panel Lights
* Available Flow-thru lights Recommended

Applications / Industries
* Microelectronics
* Pharmaceutical
* Research and Development
* Semiconductor Manufacturing

Stainless Steel 304 Class 100000 FFU Clean Room Booth With Air Shower

Model item YN-CS1500 YN-CS200 YN-CS3000 YN-CS5000
Size(mm) 1500*2000*2400 2000*3000*2400 3000*4000*2400 5000*5000*2400
Material Framework Cold rolled steel/Aluminum/Stainless sheel
Material Around Plexiglass,Soft curtain,Anti-static strip curtain
Clean class level 100 1000 10000 100000
Hepa filter Size(mm) 610*610*69 1220*610~69 1220*610*69 1220*610~69
Hepa filter Efficiency% 99.99 99.99 99.99 99.99
Hepa filter Air flow(m3/h) 4000 5040 7560 12000
Pre filter Size(mm) Optional
Motor spec Power supply 220V150hHZ 220V150hHZ 220V150hHZ 220V150hHZ
Motor spec Noisel(db) 62 63 62 63

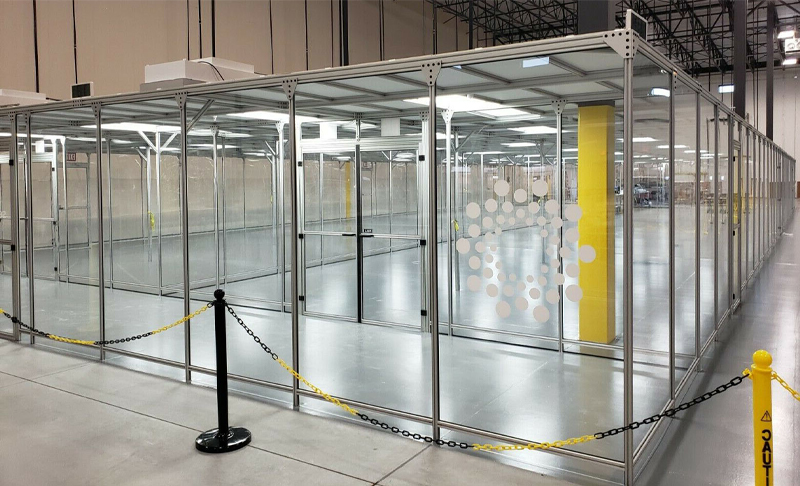

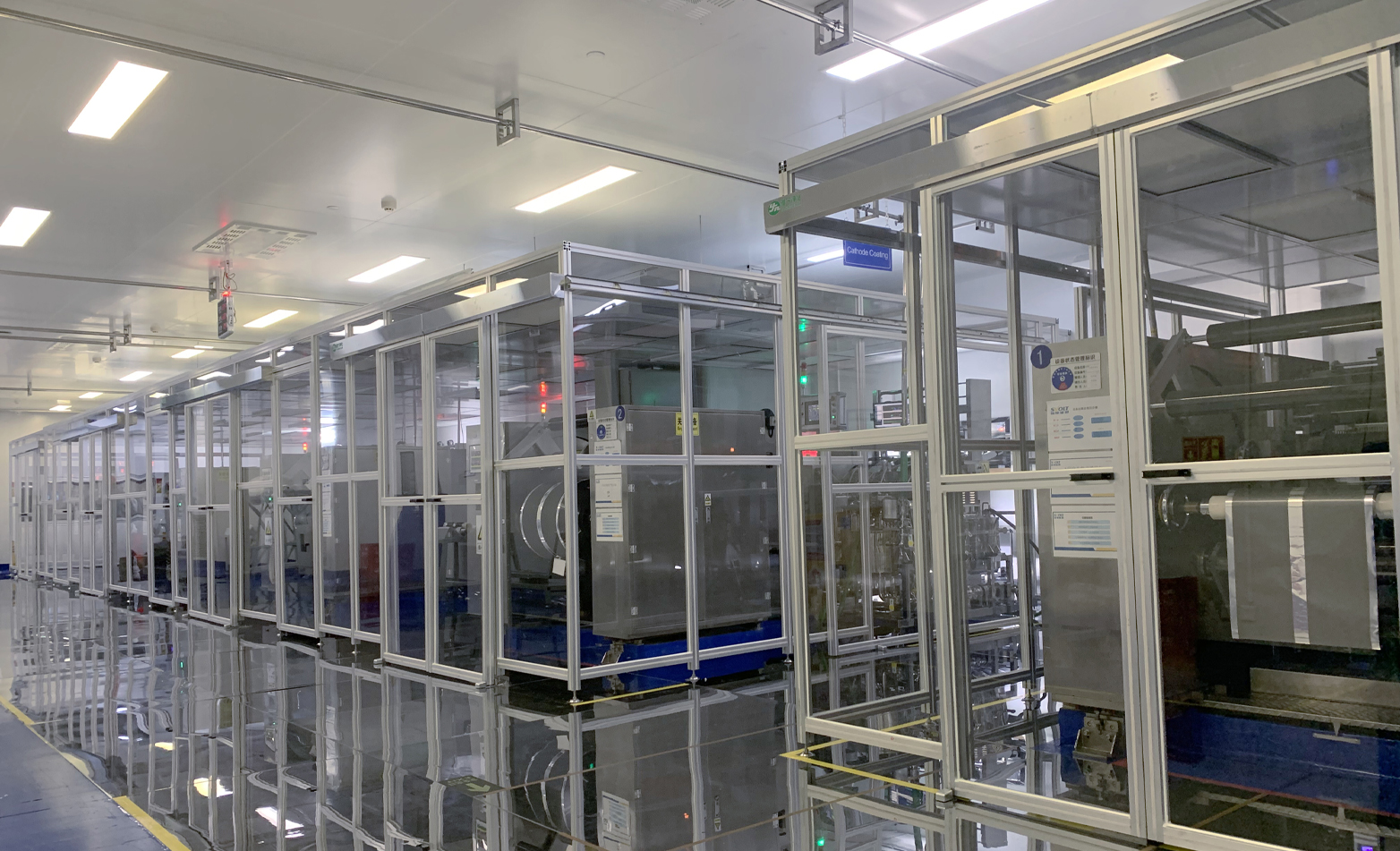

Success case show

Stainless Steel 304 Class 100000 FFU Clean Room Booth With Air Shower

Stainless Steel 304 Class 100000 FFU Clean Room Booth With Air Shower

4.Soft Wall (Anti-static curtain)

5.Clean level (Class100-Class 100000)
6.Entrance guard system
