Class 100 Purification Customizable Hepa Filter Box with 99.995% Filter Efficiency

Name: Class 100 Purification Customizable Hepa Filter Box with 99995 Filter Efficiency
Brand: YaNing
Price: 150 USD

Class 100 Purification Customizable Hepa Filter Box with 99.995% Filter Efficiency Manufactures

Brand Name : YaNing

Model Number : YN-HB

Certification : CE

Place of Origin : CN

MOQ : 1

Price : 150 USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 per month

Delivery Time : 7 - 10 days

Packaging Details : Wooden Cases and Cartons

Applicable Industries : Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops, Other, Hospital, Lab

Warranty of core components : 1 Year

Filter Efficiency : 99.995%@0.3um

Construction : Panel Filter

Eiffiency : H13/H14

Function : Air-conditioning system

Material : Epoxy powder coated steel

Contact Now

Product Description

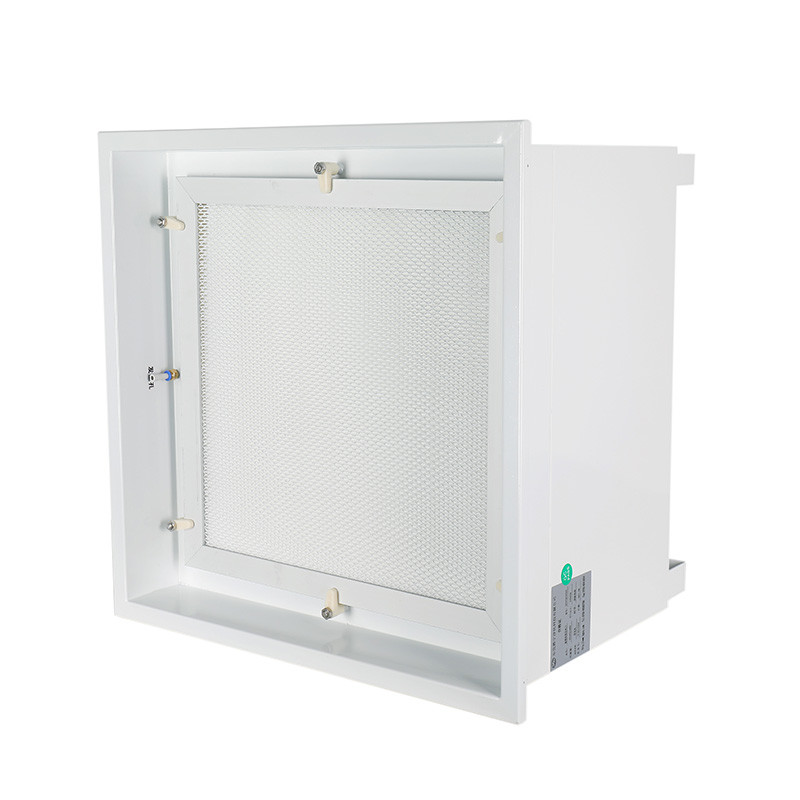

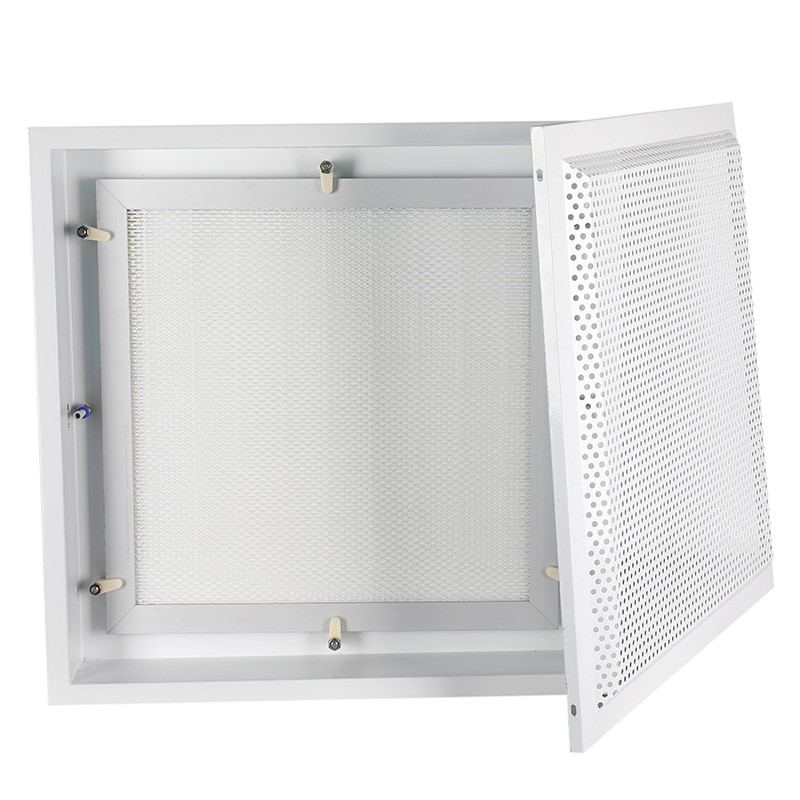

1. Hepa filter box description

HEPA diffuser, HEPA filter diffuser box, HEPA filter box
HEPA diffuser is an ideal air fitlering terminal for the clean room or clean workshop.

It consists of plenum box,hepa filter, short air inlet tube and outlet air diffuser board etc.
These series are terminal filter equipments of purification workshop, the shell is made of premium cooled steel plate, static on the surface by spraying; HEPA filter airflow outlet maintain the qulity, the flow and the direction of the air and prevent eddy current from happening; great appearance; less investment; simple structure.

It has an attractive structure, good sealing property and is convenient for both mounting and air volume.The plenum box has both the heat and sound insulating material,which not only purifies the environment, but also has noise elimnination effect.

Therefore, it is especially suitable to apply in industries such as micro-electronics, research, precision machinery, medical care, biochemistry and pharmacy etc.

2. Hepa filter box advantages

1).Filter material:glassfiber
2).Frame:Aluminum profile
3).Efficiency:more than99.99%

Class 100 Purification Customizable Hepa Filter Box with 99.995% Filter Efficiency

3. Standard Model Technology Parameter

Mini-Pleated HEPA filter	Model		Cabinet Size	Filter Size	Flange Size	(m3/h) Rated Air flow
	Tube on top	Tube on side	Cabinet Size	Filter Size	Flange Size	(m3/h) Rated Air flow
	YN-HU-484-T1	YN-HU-484-S1	534×534×380	484×484×96	320*200	1000
	YN-HU-610-T1	YN-HU-610-S1	660×660×380	610×610×96	400*200	1500
	YN-HU-915-T1	YN-HU-915-S1	915×610×380	915×610×96	500*200	2000
	YN-HU-1220-T1	YN-HU-1220-S1	1220×610×380	1220×610×96	500*300	3000

HEPA filter with Clapboard	Model		Cabinet Size	Filter Size	Flange Size	(m3/h) Rated Air flow
	Tube on top	Tube on side	Cabinet Size	Filter Size	Flange Size	(m3/h) Rated Air flow
	YN-HU-484-T2	YN-HU-484-S2	534×534×380	484×484×220	320*200	1000
	YN-HU-610-T2	YN-HU-610-S2	660×660×380	610×610×220	400*200	1500
	YN-HU-915-T2	YN-HU-915-S2	915×610×500	915×610×220	500*200	2000
	YN-HU-1220-T2	YN-HU-1220-S2	1220×610×500	1220×610×220	500*300	3000

Customized design is welcome.

Class 100 Purification Customizable Hepa Filter Box with 99.995% Filter Efficiency
